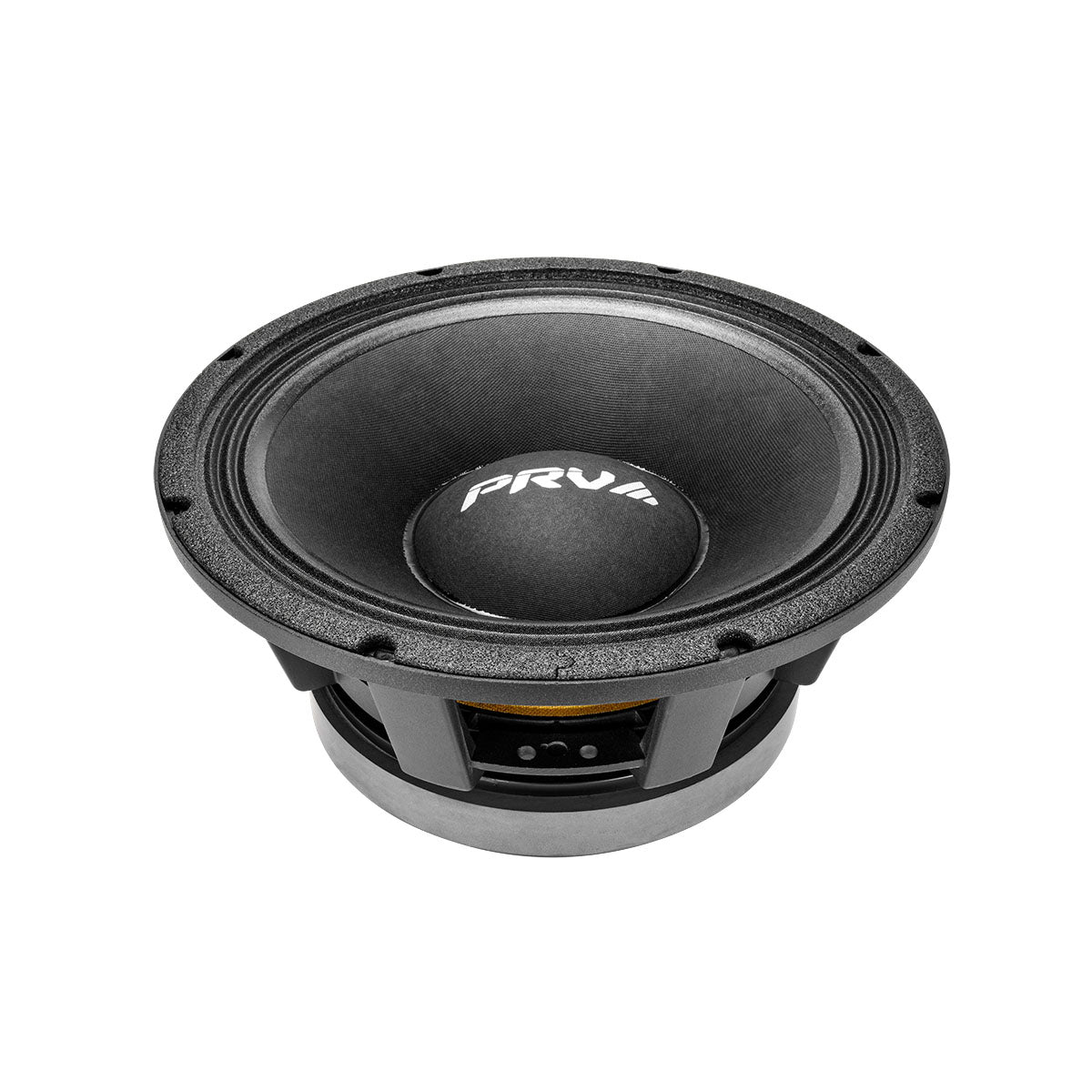

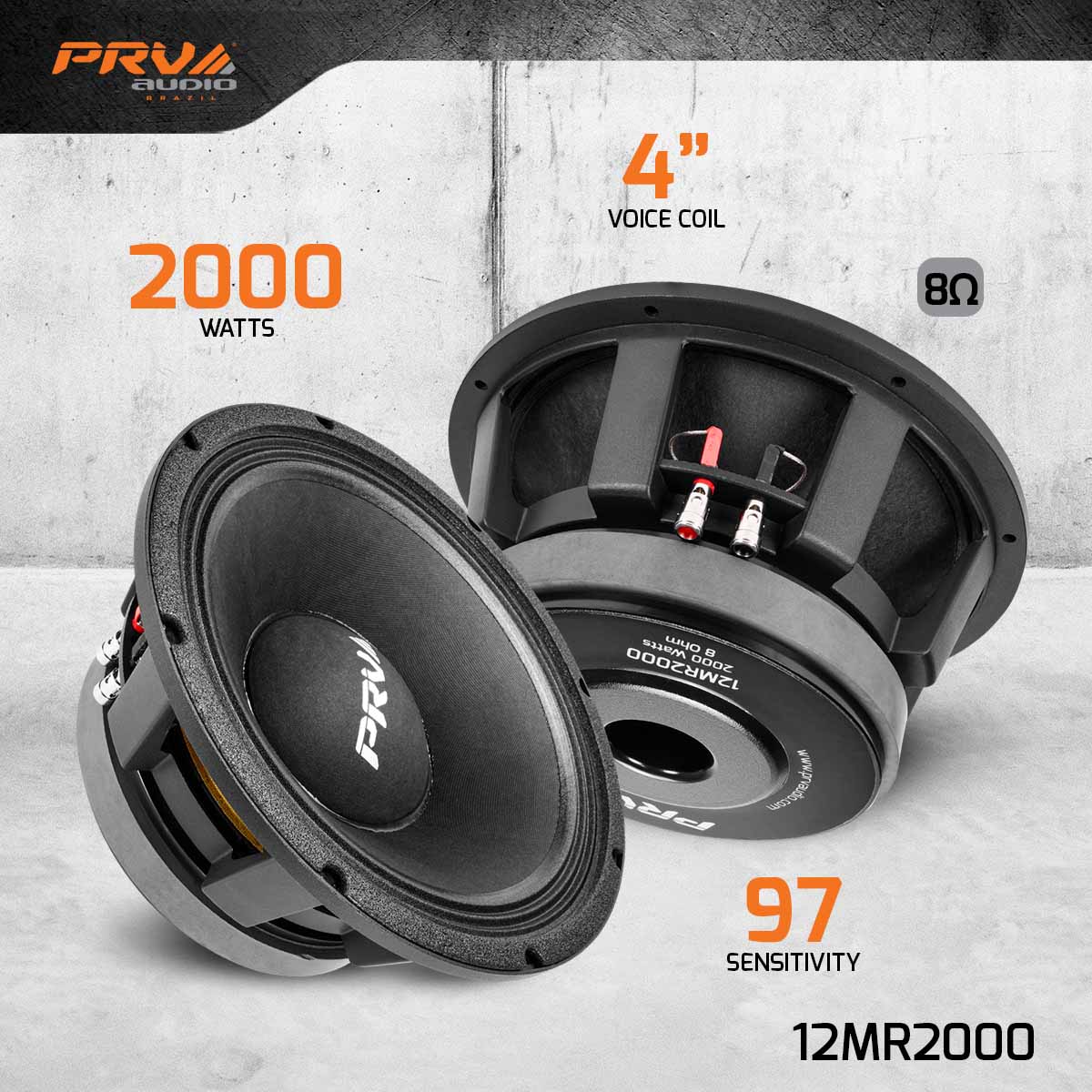

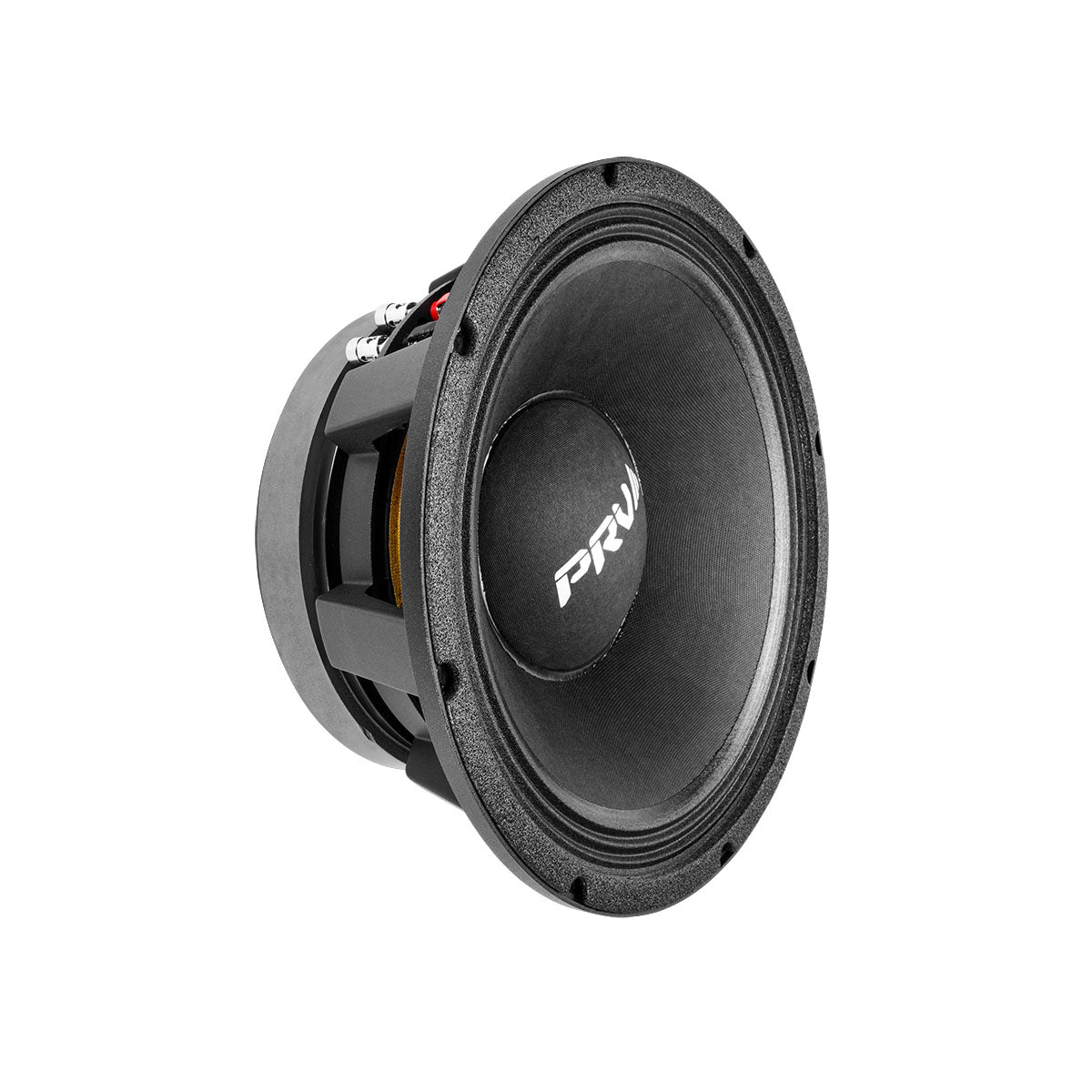

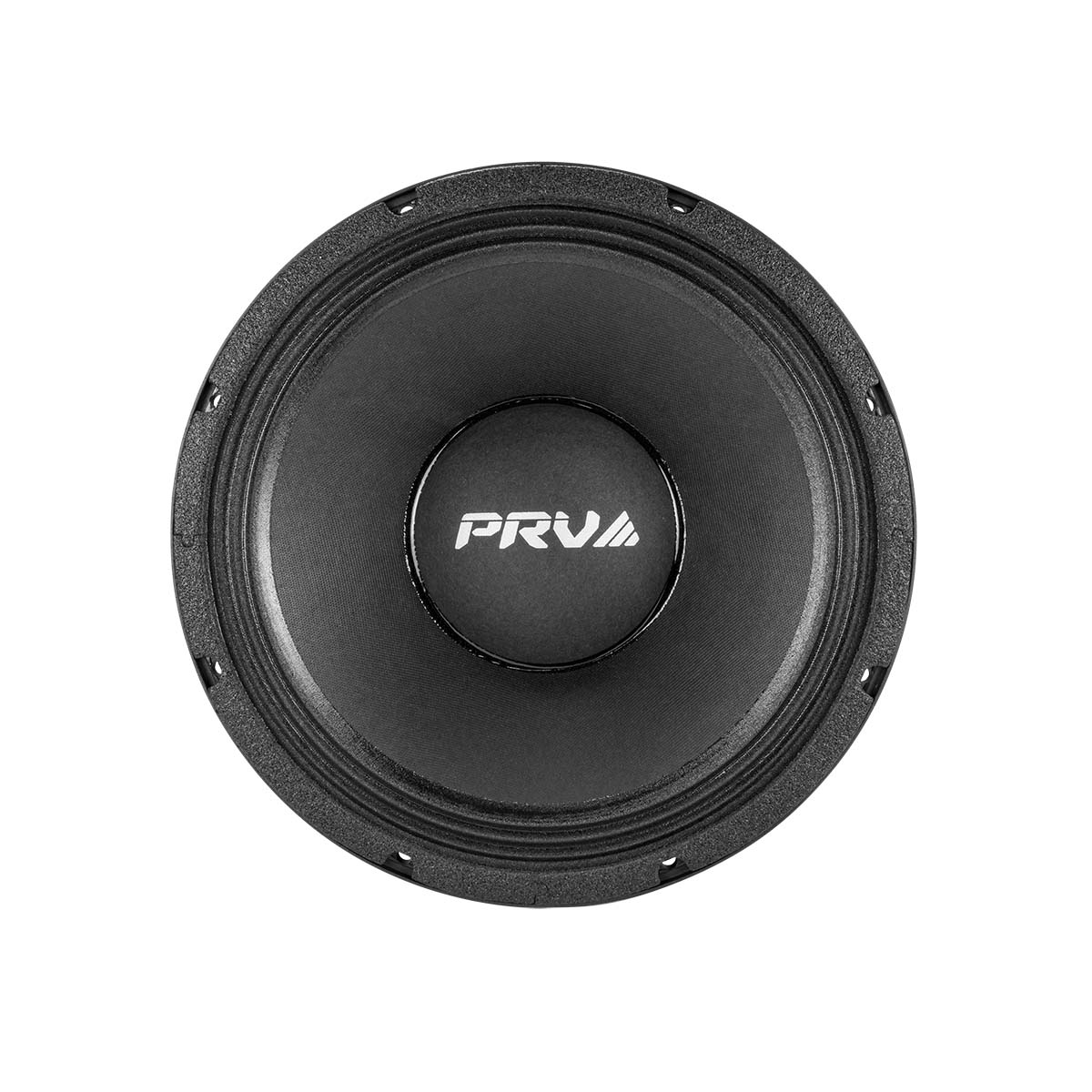

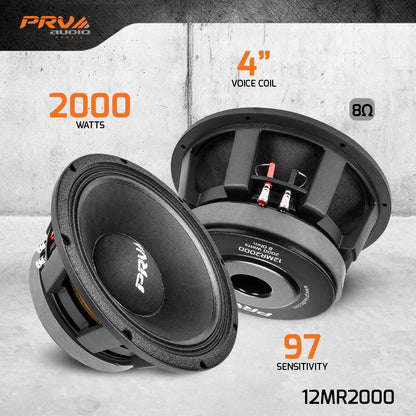

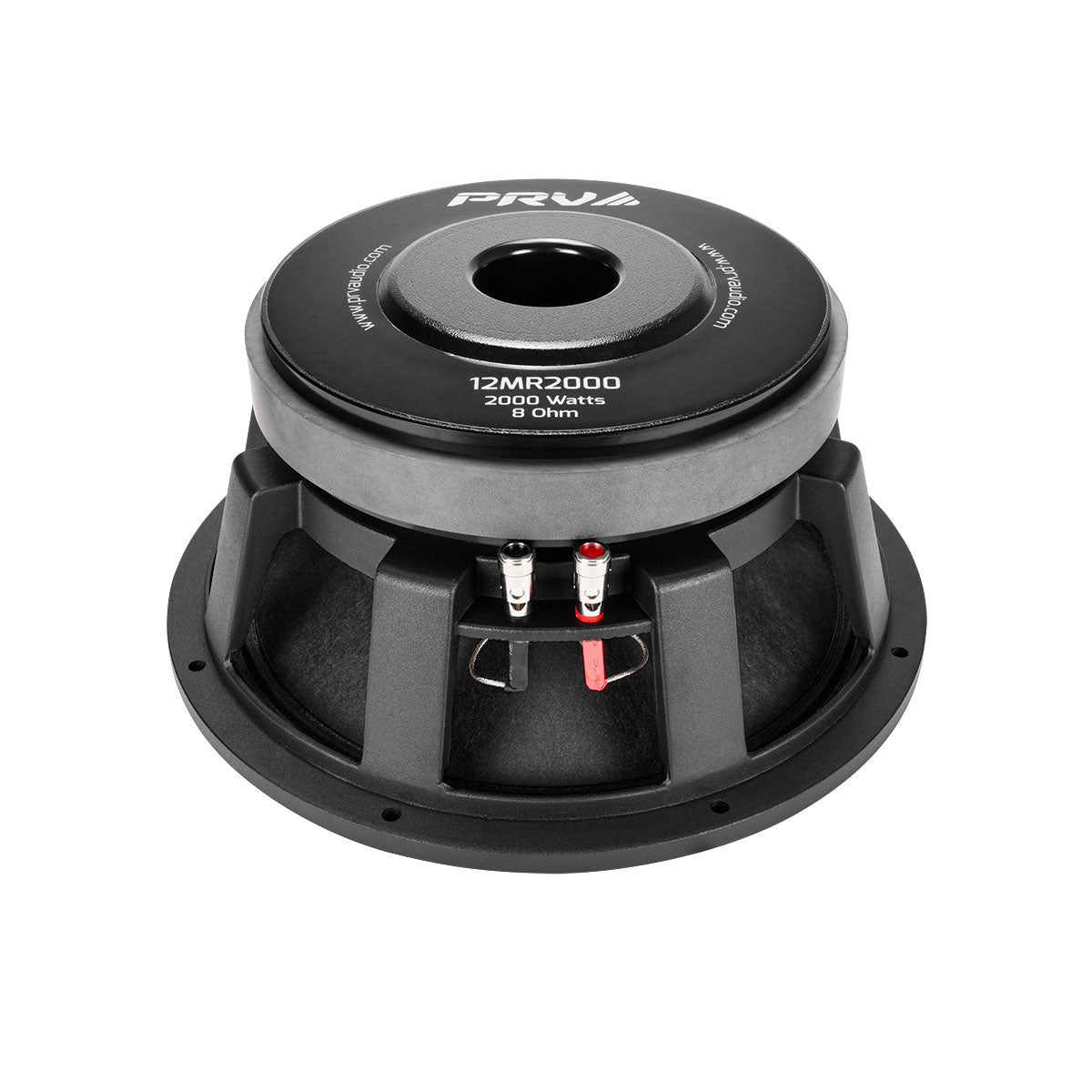

PRV AUDIO 12 Inch Midrange Speaker 12MR2000 8 Ohm 2000 Watts

Name: PRV AUDIO 12 Inch Midrange Speaker 12MR2000 8 Ohm 2000 Watts
Brand: PRV
SKU: PRV-12MR2000
Price: 189.91 USD
Availability: InStock

$189.91 USD

Sale Sold out

Product variants

Only 6 units left

Quantity

About the Product

The PRV Audio 12MR2000 midbass woofer offers outstanding durability and is our most powerful midrange driver. This woofer is great for high power 2 or 3-way systems and produces excellent vocal support for stage monitors.

Nominal Impedance: 8 Ohm
Nominal Power Handling: 1000 Watts
Continuous Program Power (RMS): 2000 Watts
Sensitivity (1W/1m): 97 dB
Voice Coil Diameter: 4″

GENERAL SPECIFICATIONS

Nominal Diameter	12″ (305 mm)
Nominal impedance	8 Ohm
Nominal Power Handling*	1000 Watts
Continuous Program Power (RMS)**	2000 Watts
Max Peak Power***	4000 Watts
Sensitivity 2.83V at 1m	97 dB
Recommended Hi Pass Crossover For Full Power Handling	145 Hz 12db Per Octave Crossover
Frequency Response	72 – 5,000 Hz
Voice Coil Diameter	4″ (101 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	17.0 mm
Former Material	Aluminum
Magnetic Gap Depth	7.5 mm
Frame Material	Die Cast Aluminum

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	52.52 l
Excursion (mathematical)***	Xmax	6.62 mm
Free Air Resonance	Fs	57.23 Hz
Mechanical Factor	Qms	23.84
Electrical Factor	Qes	0.34
Total Factor	Qts	0.33
Cone Area	Sd	573 cm²
Mechanical Mass	Mms	67.39 g
Bl Factor	Bl	21.25 Tm
Dc Resistance	Re	6.3 Ohms
Inductance	Le	0.83 mH at 1 kHz
Mechanical Mass Without Air	Mmd	59.64 g
Mechanical Compliance	Cms	0.114 mm/N

EXTRA INFO

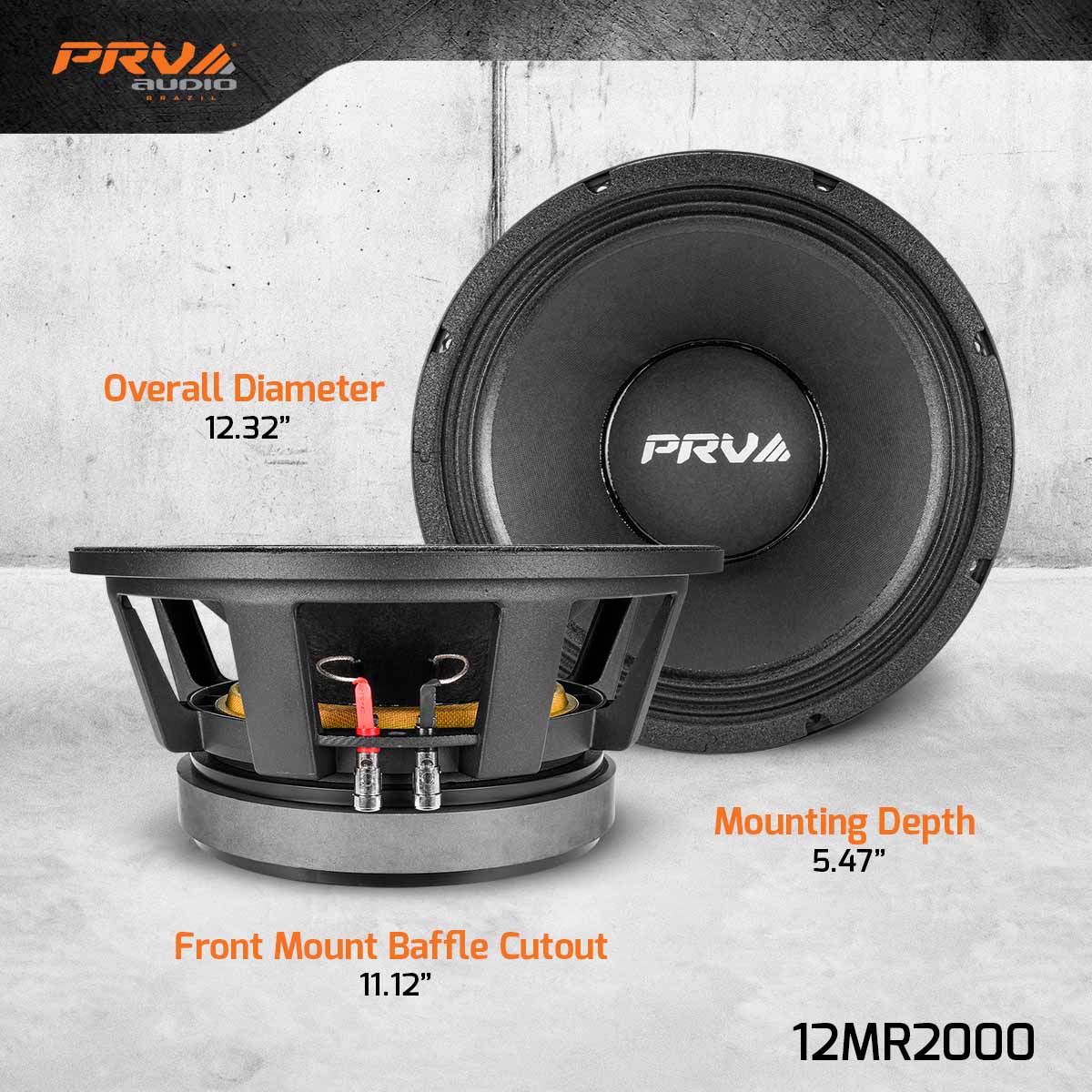

Overall Diameter	12.32” (313 mm)
Front Mount Baffle Cutout	11.12” (282.5 mm)
Mounting Depth	5.47” (139 mm)
Overall Depth	5.91” (150 mm)
Net Weight	23.04 Lbs (10.45 kg)
Shipping Weight	24.92 Lbs (11.30 kg)
Carton Dimensions W x L x H	14.37” x 14.37” x 8.07” (365 x 365 x 205 mm)
