SKU:10MH

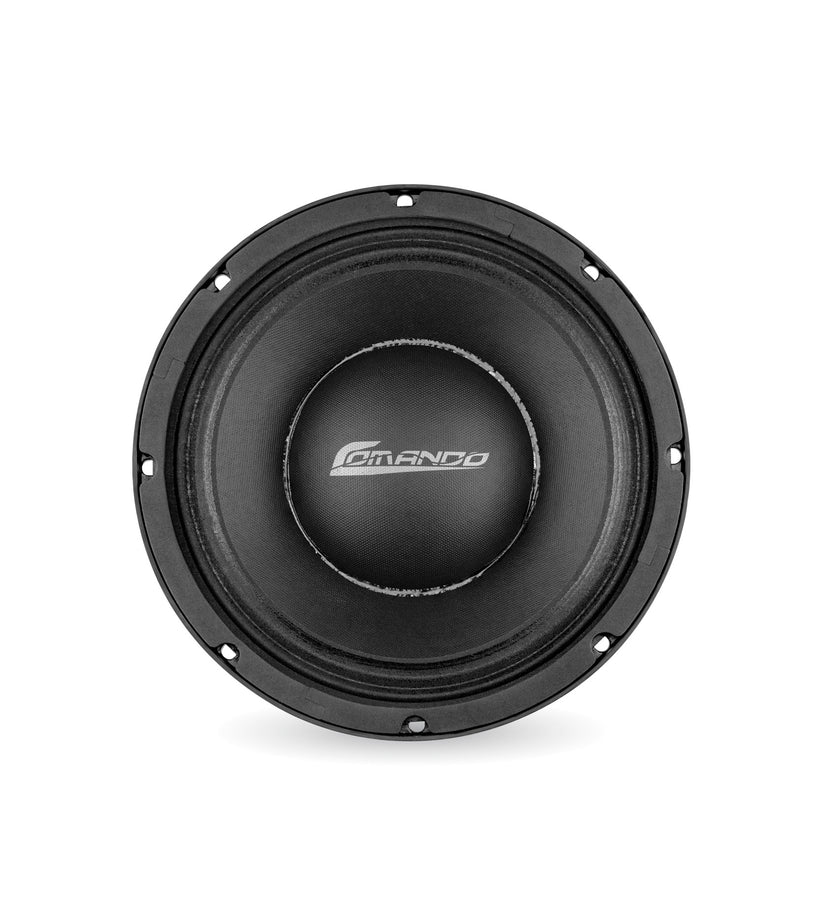

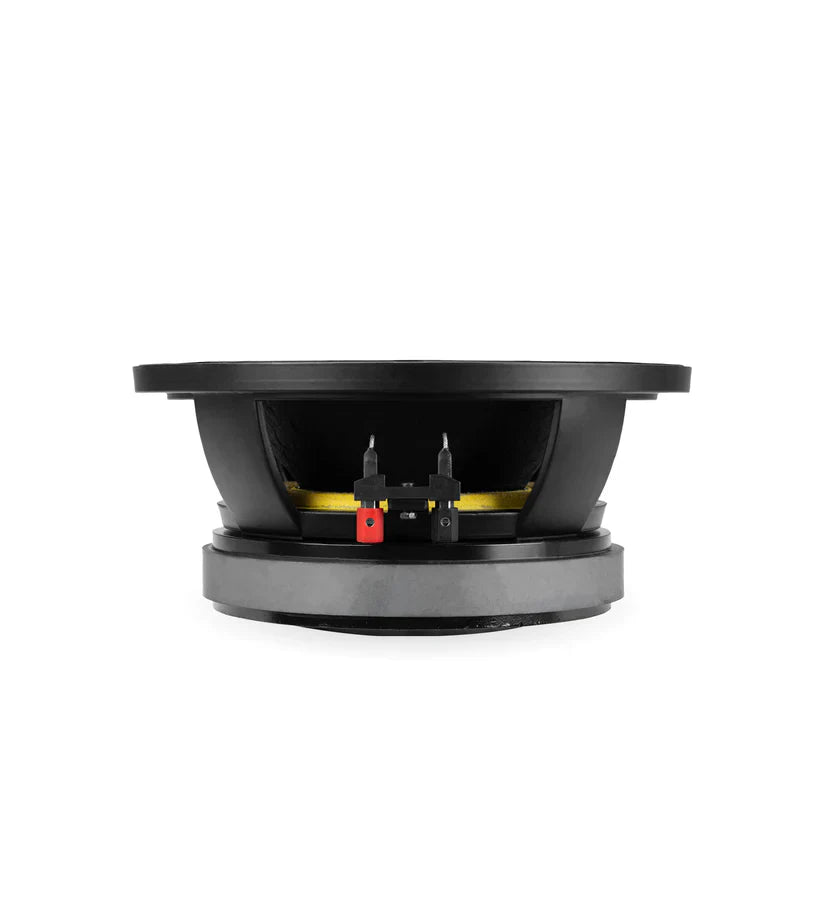

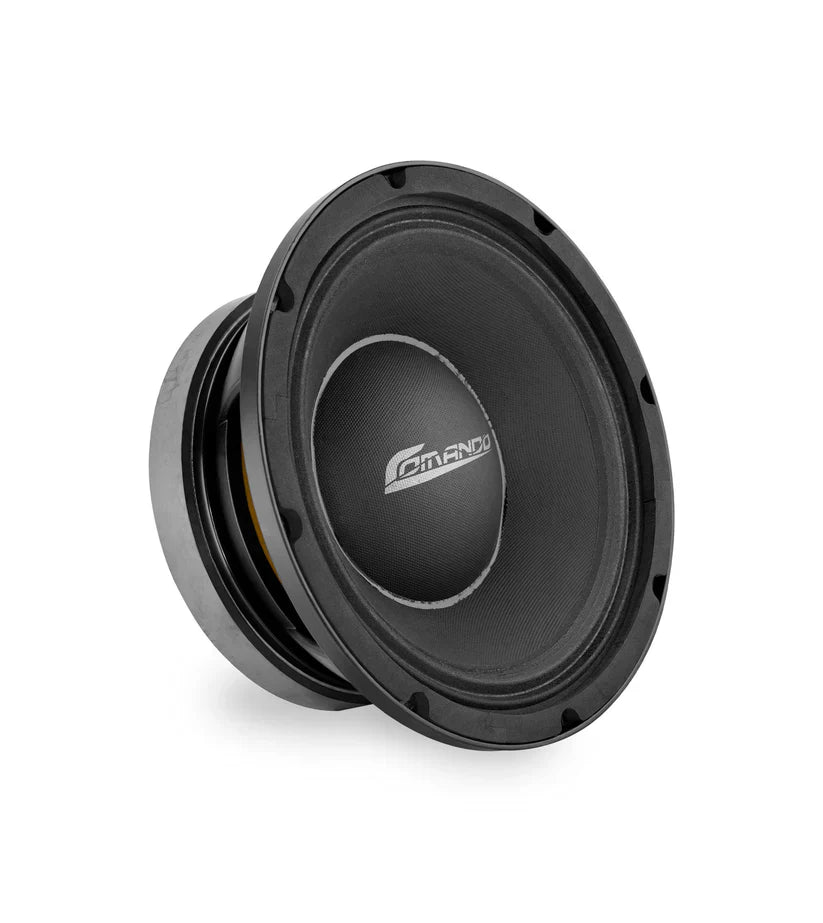

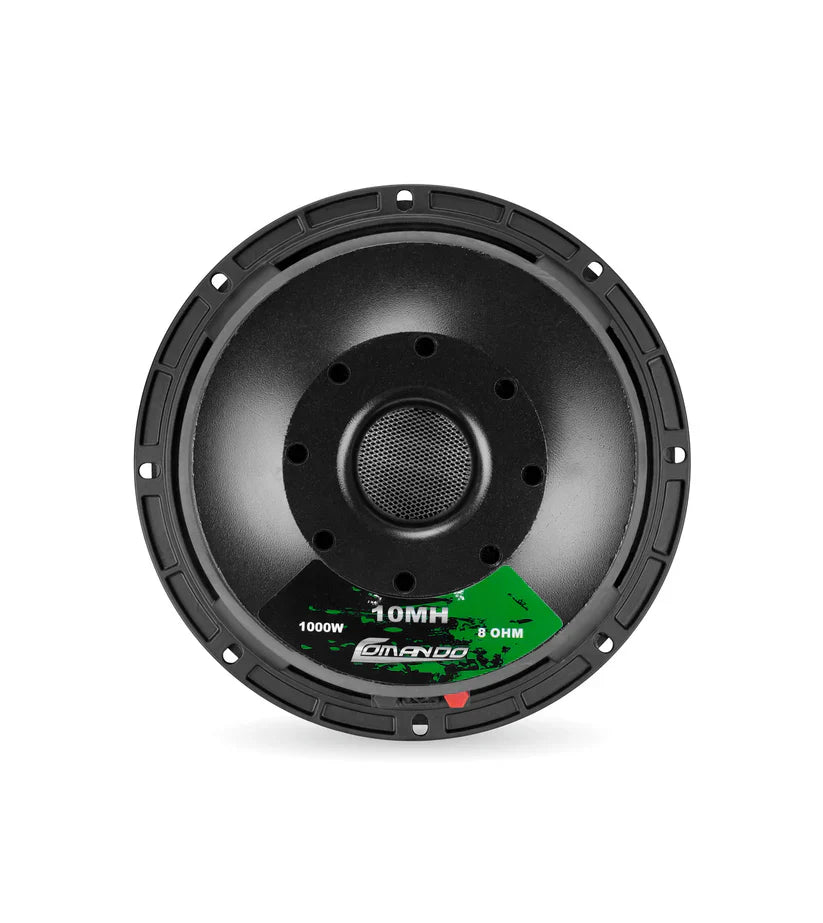

10MH | MIDRANGE 10'' SPEAKER 1000W | COIL 8Ω

$208.30 USD
$208.30 USD
Sale Sold out
Only 3 units left

About the Product

This 10-inch mid-high speaker has been designed to operate at the level of a professional mid-range audio speaker; delivering incredible sound, volume and performance. It uses an extremely light and powerful high performance ferrite magnet and a single strong 8Ω coil, allowing this speaker to deliver unmatched sound clarity.

We recommend them as the best option when you want to install your midrange speakers in any professional audio setup, and even more so in door panel installations, etc. where the weight of the speakers is often a major limitation to successfully achieve the ideal sound stage with high performance and quality, so that the best listening experience is obtained.

Nominal Chassis Diameter 10"/255mm
Max Power 1000Watts
RMS Power 500Watts
Impedance
Frequency Response 70-4KHz
Sensitivity(1W/1m) 98dB
Voice Coil Diameter 4"/99.2mm
Winding material Aluminium
Magnet Ferrite

FS Hz 70Hz
Vas 22.6 Litres
Re Ohms 5.3Ω
Qms 5.064
Qes 0.422
Qts 0.39
BL T/m 15.329
MMS(gms) 40.132
Xmas(mm) 3.5
Sd 35.299
Efficiency % 1.797
Le(1k Hz) 32.357
EBP 179Hz

Overall Diameter 10"/255mm
Bolt Circle Diameter 9.6"/244mm
Baffle cutout Diameter 9.17"/233mm
Depth 4.9“/125mm
Net Weight 7.5kgs
Shipping Weight 8.6kgs
Shipping Box 28*28*15.5cm
